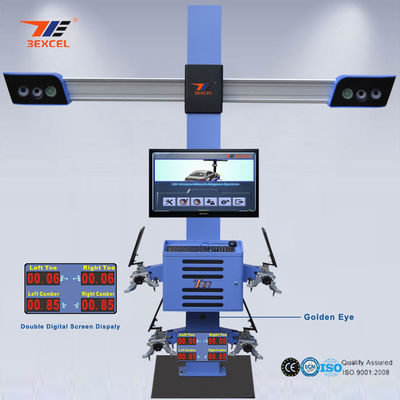

Two Monitor 3D Front End Alignment Equipment T58 Mobile For Cars With Four Cameras

Product Functions & Features:
Seconds
Measurement accuracy up to 0.01.
Customer feedback reminder timely reminds workshop to
follow up with car situation and maintain old customer.
Black box records the operation situation of wheel aligner,
effectively improve the efficiency of problem-solution.
Dynamic graphics shows variation value of every angle.
Voice remind function.
3D animation demonstration make it easier to learn.
Rub radius measure the steering wheel holder whether
symmetrical or not, then to keep stability.
Free vehicle-pushing is not restricted by levelness of
platform.
Additional measurement can realize angle analysis for
chassis.

3D Product Advantage:
Technique Advantage:
Intellectual property rights, upgraded products with sustainability.
Hardware Advantage:
Four cameras with 5 mega-pixel.
Chessboard target design. (Exclusive Patent)
Measurement Advantage:
- Measurement accuracy up to 0.01.
- Dynamic graphics shows variation value of every angle.
- Free vehicle-pushing is not restricted by levelness of platform.
- Without looking at screen in the process of measurement.
Operation can be finished by intelligent LED indication light.

Measurement Range & Precision
Measurement Precision Measurement Accuracy
±0.01° ±8°
±0.03° ±19°
±0.02° ±19°
±0.01° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.25cm <265cm
Measurement Items
Camber
Caster Angle
Front Wheel K.P.I.
Toe
Rear Wheel Thrust Angle
Rear Wheel Shaft Deflection
Wheelbase Difference
Front Setback
Rear Setback
Wheelbase
Tread ±0.25cm <533cm
