| Brand Name: | 3EXCEL |
| Model Number: | T75 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 5-7WORK DAYS |
| Payment Terms: | T/T |

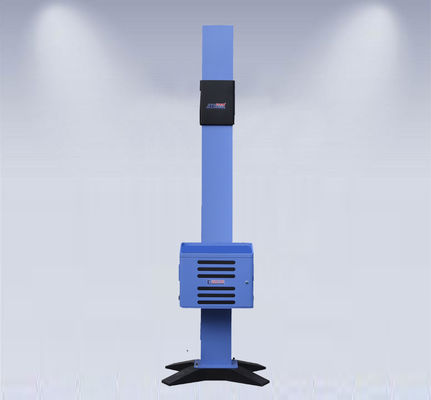

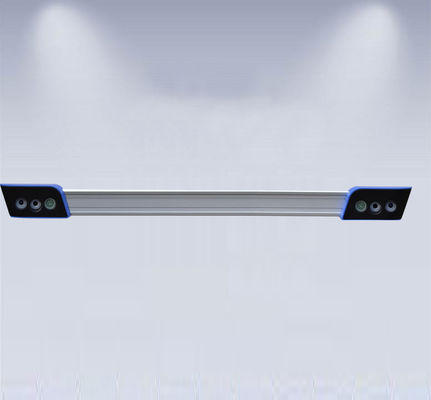

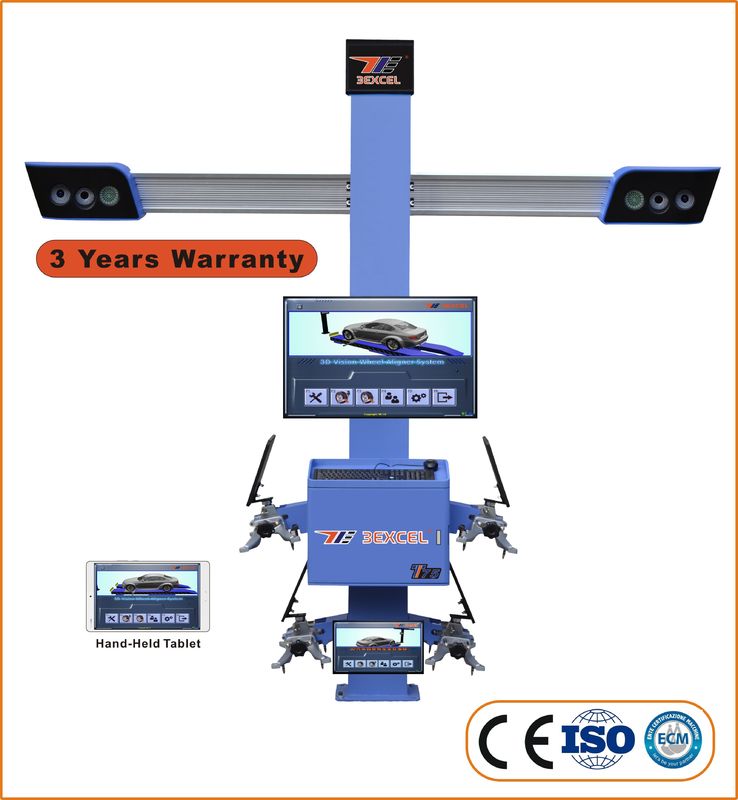

High-Class 4 Cameras 3D Wheel Alignment Equipment With Dual-Screen Display and Tablet T75
Product Functions & Features:
1.Built-in industrial computer, small size,powerful functions.
2.Operation short and sweet, intelligent and quick .
3.Full -range 3D animation instruction ,simple and easy.
4.Target monitoring ,intellignet warning function.
5.Telephone follow-up function, good helper to manage customers.
6.Automatic identify direction of vehicle -pushing and steering wheel turning .
7.Intelligent diagnose function ,quick problem shooting.
8.GoldenEye camera eliminates the need for drive-on assistance
Non-stop runout compensation and caster swing .
9.Black box data recording and voice remind function.
Online free update easily .
10.Extensive additional measurements including wheelbase ,track width etc.
11.Dual LCD display, convenient readings watch on under vehicle.
12.VAG function special for Audi and VW constant toe adjustment.
13.100mm Micro vehicle pushing within the range of turntable.
Standard Configuration
Measurement Range & Precision
| Technical Parameters | |||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ | |

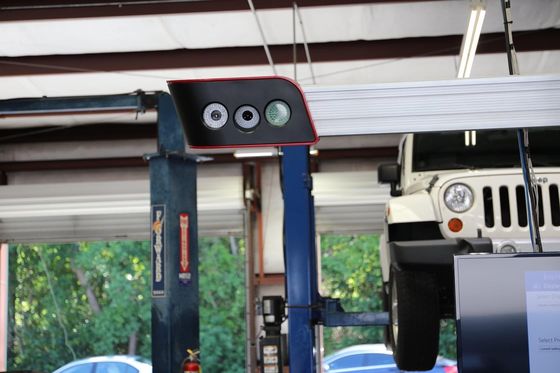

T75 In Customer's Warehouse:
Any more information please contact us .
Web: www.3excel.com
Email: serena@3excel.com
