| Brand Name: | 3EXCEL |
| Model Number: | T50 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 5-7WORK DAYS (depend on quantity) |
| Payment Terms: | T/T |

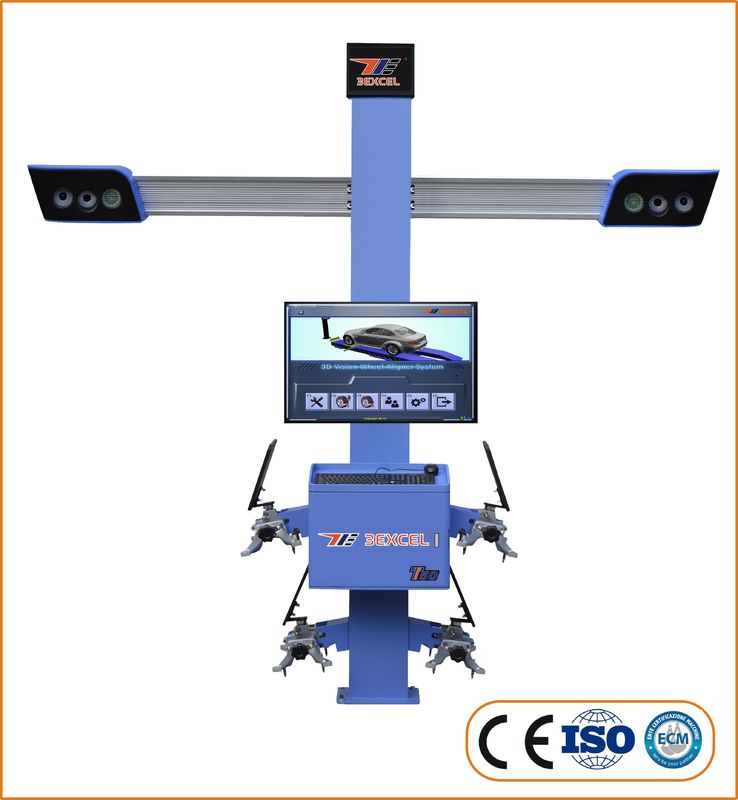

Exclusive Four Industry Defination Cameras 3D Wheel Alignment Machine T50
Product Features:
Measurement Range & Precision
| Specification | Accuracy | Measuring Range |
| Camber | ±2´ | ±8´ |
| Toe | ±2´ | ±5´ |
| SAI | ±4´ | ±20´ |
| Caster | ±4´ | ±20´ |
| Track width difference | ±2´ | ±2´ |
| Wheelbase difference | ±2´ | ±2´ |
| Front setback | ±2´ | ±2´ |
| Rear setback | ±2´ | ±2´ |
| Track width | ±0.64cm | ‹265cm(105in) |
| Wheelbase | ±0.64cm | ‹533cm(210in) |
Additional Measurement:
| Additional Measurement |
| Thrust angle |
| Extended measurement |
| Wheelbase |
| Track width |
| Tire diameter |
| Wearing diameter |
| Steering wheel centering |
| Max steering angle |
| Toe-out on 20 degree turn |
| Toe on zero camber |
PACKING INFORMATION:
Weight:245kg
CBM:1.34
Two packings :
1.2890cm*380cm*545cm
2.138cm*61cm*88cm
Installation Condition:
Applications :

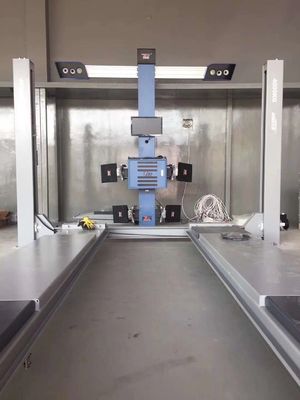

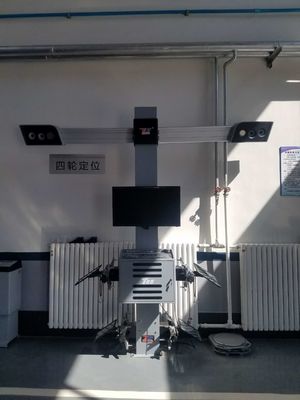

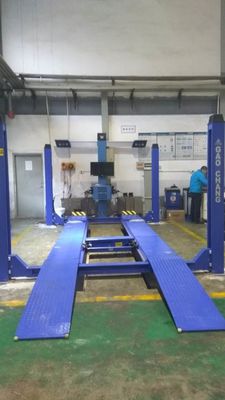

3D Wheel alignment machine T50 in 4s shop
Any more information please contact us .
Web: www.3excel.com
Email: serena@3excel.com
Video
Video
Video
|
