| Brand Name: | 3Excel |
| Model Number: | A8 |
| MOQ: | 1SET |
| Price: | Negotiable |
| Delivery Time: | 5-7 WORK DAYS( depend on quantity) |
| Payment Terms: | T/T |

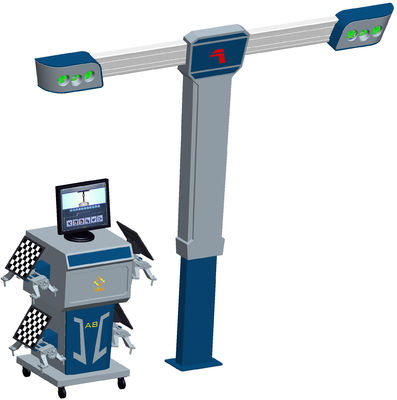

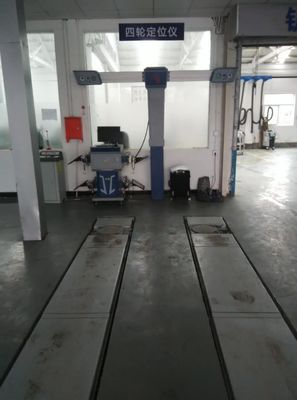

High Accuracy 3D Wheel Aligner T51 & 4T Wheel Alignment Scissor lift with Secondary lift
3D Wheel Alignment Equipment Features:
1.Accurate
2.4 high accuracy cameras
3.4 percision targets
4.Self-Developed Software
3.Efficient
1.Non-stop vehicle pushing and caster swing;
2.Automatic identify direction of car-pushing and steering wheel turning.
4.Convenient
1.One-click upgrading.
2.intelligent diagnosis.
3.maintenace free.
4.Online service timely.
5.Simply
1.Foolish software system is easy to operate.
Technical Parameters:
| Specification | Accuracy | Measuring Range |
| Camber | ±2´ | ±8´ |
| Toe | ±2´ | ±5´ |
| SAI | ±4´ | ±20´ |
| Caster | ±4´ | ±20´ |
| Track width difference | ±2´ | ±2´ |
| Wheelbase difference | ±2´ | ±2´ |
| Front setback | ±2´ | ±2´ |
| Rear setback | ±2´ | ±2´ |
| Track width | ±0.64cm | ‹265cm(105in) |
| Wheelbase | ±0.64cm | ‹533cm(210in) |
Packing List:
2.Stable
1.the measurement report is repeatable.
Camera beam*1
Integrated Column*1
Brand Pc*1
32" LCD*1
19"LCD
Target *4
24'' Wheel Clamp*4
Turntable *1
Brake Lock*1
Steering Lock*1
Wheel Clamp Fastener*1
Wedge Pad *2
Transitional Block*2

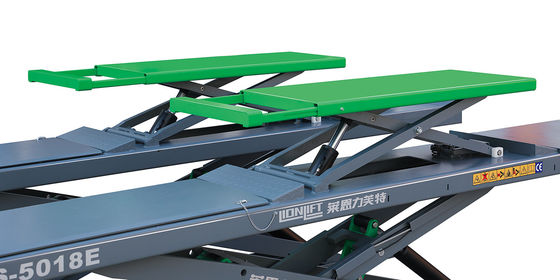

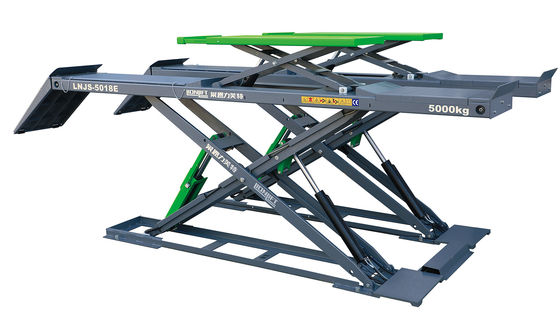

5T Wheel Alignement Scissor Lift with secondary Scissor lift.
The details :
Lifting Capacity: 5000KG
Platform Length: 4500mm
Platform Width: 630mm
Max lifting height: 1850mm
Min lifting height: 165mm
Second lifting height: 450mm
Voltage: 380/220V
Power: 3.0KW
System Pressure: 25Mpa
Air pressure: 0.6-0.8Mpa
If you are interested in our 3D wheel alignment equipment and Scissor lift product ,please contact us
Email:serena@3excel.com
WhatsApp:+8613265074898
