| Brand Name: | 3EXCEL |
| Model Number: | T50+ |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 1-2 Weeks (depends on quantity) |
| Payment Terms: | T/T, Western Union |
Factory Directly Sale Classic 3D Wheel Alignment Machine T50+ With Four High Defination Cameras
Measurement Range & Precision
| Specification | Accuracy | Measuring Range |
| Camber | ±2´ | ±8´ |
| Toe | ±2´ | ±5´ |
| SAI | ±4´ | ±20´ |
| Caster | ±4´ | ±20´ |
| Track width difference | ±2´ | ±2´ |
| Wheelbase difference | ±2´ | ±2´ |
| Front setback | ±2´ | ±2´ |
| Rear setback | ±2´ | ±2´ |
| Track width | ±0.64cm | ‹265cm(105in) |
| Wheelbase | ±0.64cm | ‹533cm(210in) |
Additional Measurement:
| Additional Measurement |
| Thrust angle |
| Extended measurement |
| Wheelbase |
| Track width |
| Tire diameter |
| Wearing diameter |
| Steering wheel centering |
| Max steering angle |
| Toe-out on 20 degree turn |
| Toe on zero camber |
Product Features:
Installation Condition:
Applications :

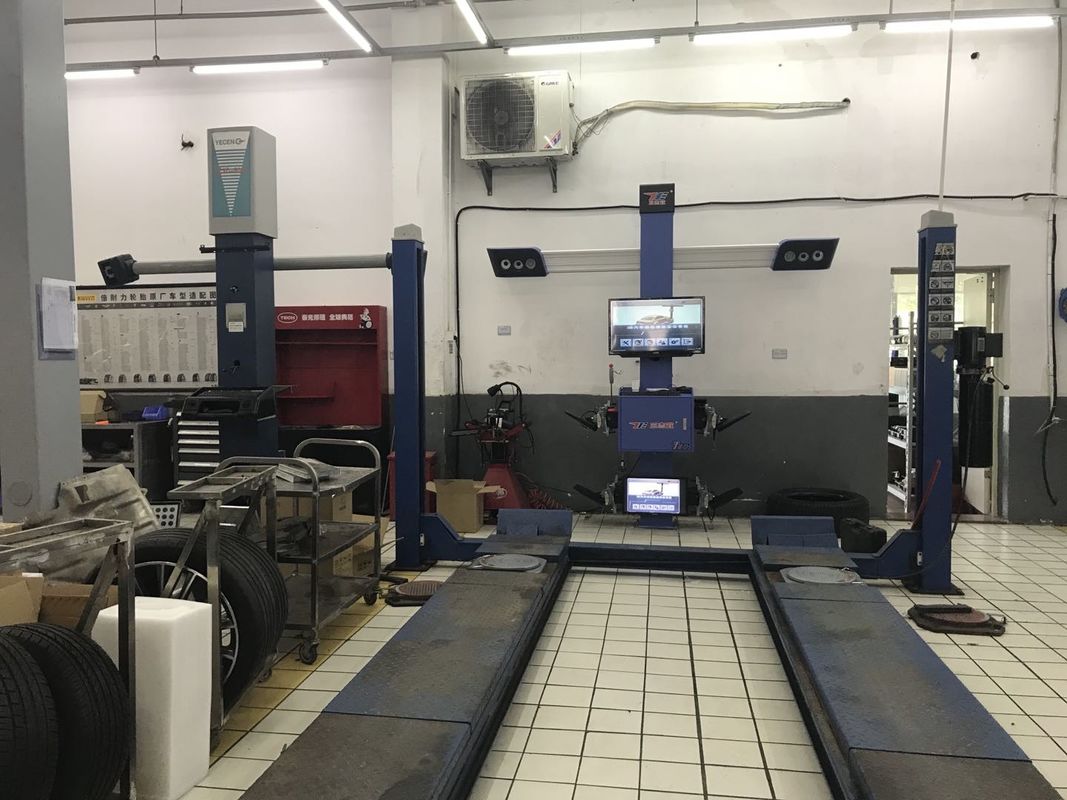

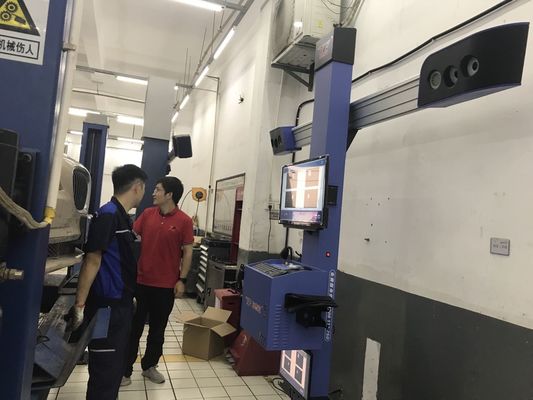

3D Wheel alignment equipment T50+ with double screen
Any more information please contact us .
Web: www.3excel.com
Email: serena@3excel.com
Video
Video
Video
|
