| Brand Name: | 3EXCEL |
| Model Number: | T288 |
| MOQ: | 1SET |
| Price: | Negotiation |
| Delivery Time: | 5-8DAYS |
| Payment Terms: | T/T |
3D Wheel Alignment Equipment Is Suit For Post Lifts &Pit Service With Auto-Tracking Cameras Beam
Main features of 3d wheel alignment
1. High accuracy dynamic industrial cameras, quick reception of image information from targets.
2. Four targets only transmit images, no electronic components and no connection cables can reduce failure greatly.

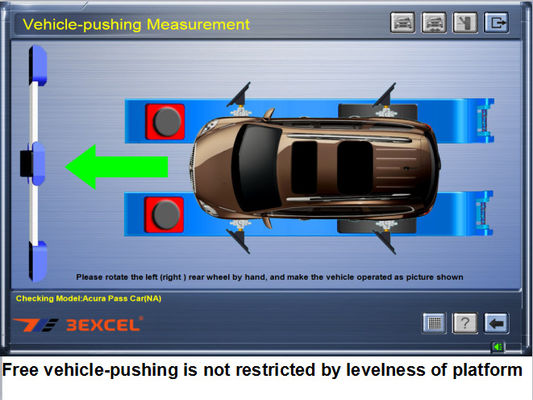

3. Finish the offset compensation and measurement by one time lifting or pushing cars.
4. One-off calibration in factory, the machine can be used directly after assembly.

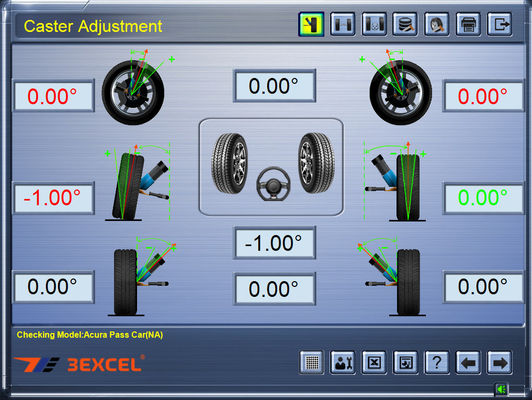

5. With the function of steering calibration.
6. Measurement unit has grad, millimeter and degree, convenient to different operation habits.
7. Windows 7 &10 system, Windows XP system, including Chinese, English, Spanish, Russian and 26 languages.
8.Mature product,self researching software,updating for free.
9.Maintenance free for spare parts.
Technical Parameters
| Technical Parameters | |||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ | |
Standard Configuration:
1. Camera Beam*1
2.Column*1
3.Target*4
4.Turntable*2
5.Wheel Clamp*4
6.Steering Wheel *1
7.Brake Depressor*1
8.Wheel Clamps Fastener*4
9.Wedge Block*2
10.Cabinet*1
11.Brand PC*1
Application :
Any more information please contact us .
Website:www.3excel.com
Email:serena@3excel.com
