High Efficiency Original CCD Wheel Aligner Balancing Machine Portable Auto Diagnostic Tool

Product Functions & Features:
With tablet.
Customer feedback reminder timely reminds
workshop to follow up with car situation and
maintain old customer.
Black box records the operation situation of
wheel aligner, effectively improve the efficiency of
problem-solution.
Dynamic graphics shows variation value of every
angle.
Measurement accuracy up to 0.01.

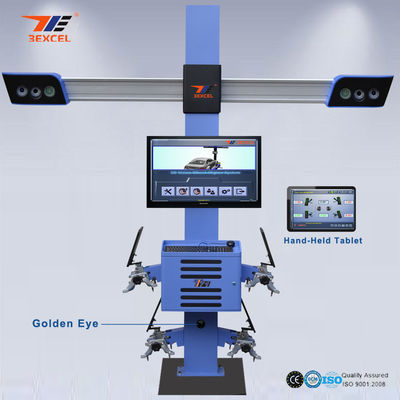

Golden Eye Function.
VAG super low chassis measurement.
3D animation demonstration make it easier to learn.
Rub radius measure the steering wheel holder
whether symmetrical or not, then to keep stability.
Free vehicle-pushing is not restricted by levelness
of platform.
Additional measurement can realize angle analysis
for chassis.
Voice remind function.
Wireless remote control.
Large LCD display.

3D Product Advantage:
Technique Advantage:
Intellectual property rights, upgraded products with sustainability.
Hardware Advantage:
Four cameras with 5 mega-pixel.
Chessboard target design. (Exclusive Patent)
Measurement Advantage:
- Measurement accuracy up to 0.01.
- Dynamic graphics shows variation value of every angle.
- Free vehicle-pushing is not restricted by levelness of platform.
- Without looking at screen in the process of measurement.
Operation can be finished by intelligent LED indication light.
- Rub radius measure the steering wheel holder whether
symmetrical or not, then to keep stability.

Measurement Range & Precision
Measurement Precision Measurement Accuracy
±0.01° ±8°
±0.03° ±19°
±0.02° ±19°
±0.01° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.25cm <265cm
Measurement Items
Camber
Caster Angle
Front Wheel K.P.I.
Toe
Rear Wheel Thrust Angle
Rear Wheel Shaft Deflection
Wheelbase Difference
Front Setback
Rear Setback
Wheelbase
Tread ±0.25cm <533cm
