| Brand Name: | 3Excel |
| Model Number: | T51+ |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T |

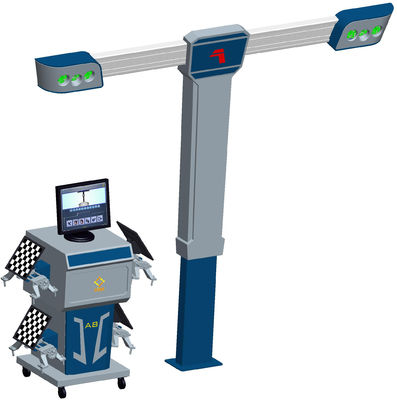

Unique 4 Cameras High Class 3D Wheel Alignment Machine For Repair Car Shop/Garage
1.Product Features:
1.Unique four camera design made in China.
Camera target one to one, accurate and fast.
2.Black box function, record working status at all time.
3.Full-range 3D animation instruction, simple and easy.
4.Intelligent diagnose function, quick problem shooting.
5.Voice instruction function, properly operate the machine.
6.Telephone follow-up function, a good helper to manage customers.
7.Jack & hold function, easy adjustment with wheels off road.
8.Extensive additional measurement including wheelbase, track width etc.
9.Golden eye camera eliminates the need for drive-on assistance.
10.Non-stop runout compensation and caster swing.
2.Technical Parameter:
| Specification | Accuracy | Measuring Range |
| Camber | ±2´ | ±8´ |
| Toe | ±2´ | ±5´ |
| SAI | ±4´ | ±20´ |
| Caster | ±4´ | ±20´ |
| Track width difference | ±2´ | ±2´ |
| Wheelbase difference | ±2´ | ±2´ |
| Front setback | ±2´ | ±2´ |
| Rear setback | ±2´ | ±2´ |
| Track width | ±0.64cm | ‹265cm(105in) |
| Wheelbase | ±0.64cm | ‹533cm(210in) |
3.Additional Measurement :
| Additional Measurement |
| Thrust angle |
| Extended measurement |
| Wheelbase |
| Track width |
| Tire diameter |
| Wearing diameter |
| Steering wheel centering |
| Max steering angle |
| Toe-out on 20 degree turn |
| Toe on zero camber |
4.What's the difference between 2 cameras and 4 cameras wheel aligner?
5.Applications:
More information please contact us.
Web:www.3excel.com
Email: serena@3excel.com
