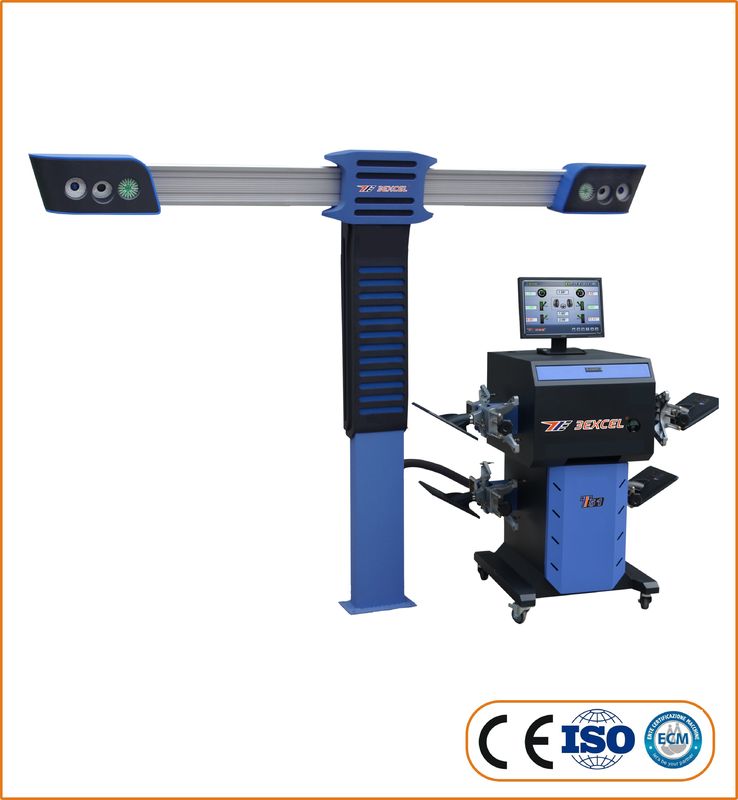

Accurate 3D Wheel Alignment Machine Measure Wheel Angles 110-220V With 4 Cameras

Brand Name:	3Excel
Model Number:	T51
MOQ:	1 SET
Price:	Negotiable
Delivery Time:	5-7 work days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ECM

Warranty:

A Year

Power Supply:

110-220V

Product Name:

Alignment Machine

Max. Rim Diameter:

11"~24"

Max. Weight:

255KG

Language:

English,Polish,German,Arabic Etc.

Function:

Measure Wheel Angles

Keywords:

3D Wheel Aligner ,3D Wheel Alignment Machine

Packaging Details:

plywood

Supply Ability:

2000 Set/Year

Highlight:

vehicle front end alignment

4 wheel alignment equipment

Product Description

Accurate 3D Wheel Alignment Machine Measure Wheel Angles 110-220V With 4 Cameras

1.Product Features:

Unique four camera design made in China.
Camera target one to one, accurate and fast.
Black box function, record working status at all time.
Full-range 3D animation instruction, simple and easy.
Intelligent diagnose function, quick problem shooting.
Voice instruction function, properly operate the machine.
Telephone follow-up function, a good helper to manage customers.
Jack & hold function, easy adjustment with wheels off road.
Extensive additional measurement including wheelbase, track width etc.
Golden eye camera eliminates the need for drive-on assistance.
Non-stop runout compensation and caster swing.

2.Technical Parameter:

Specification	Accuracy	Measuring Range
Camber	±2´	±8´
Toe	±2´	±5´
SAI	±4´	±20´
Caster	±4´	±20´
Track width difference	±2´	±2´
Wheelbase difference	±2´	±2´
Front setback	±2´	±2´
Rear setback	±2´	±2´
Track width	±0.64cm	‹265cm(105in)
Wheelbase	±0.64cm	‹533cm(210in)

3.Additional Measurement :

Additional Measurement

Thrust angle

Extended measurement

Wheelbase

Track width

Tire diameter

Wearing diameter

Steering wheel centering

Max steering angle

Toe-out on 20 degree turn

Toe on zero camber

4.Installnation Condition:

Accurate 3D Wheel Alignment Machine Measure Wheel Angles 110-220V With 4 Cameras 0

More information please contact us.

Web:www.3excel.com

Email: serena@3excel.com
