| Brand Name: | LIONLIFT |
| Model Number: | LNJS-3518 |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | T/T, Western Union |

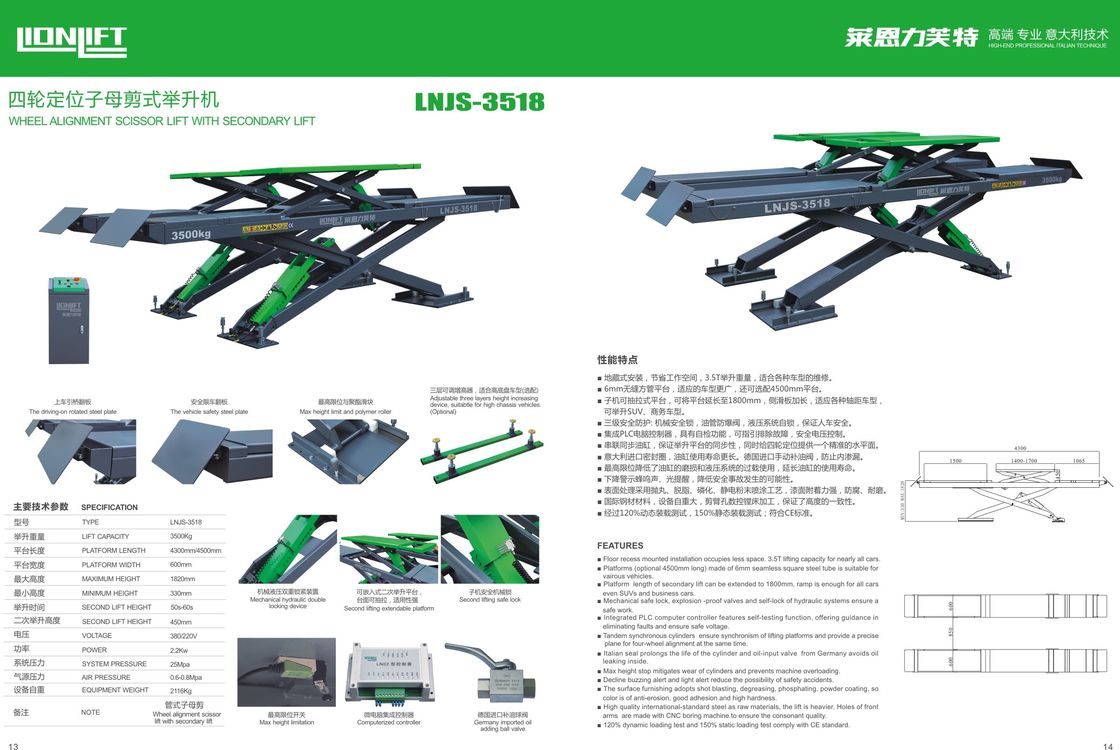

3.5T Wheel Aligment Scissor Lift With Secondary Lift
Descriptions:
Double series synchronous balance cylinders;
Powder coating; Computerized controller;
Oil hose explosion-proof valve and Germany oil adding ball valve and Italy oil seals;
Rollover-prevent functions;
Second lifting extensible platform;
Mechanical hydraulic double locking and max height limit and second scissor lift safe lock;
Driving-on rotated and vehicle safety steel plate;
Mounted in the ground or on the ground;
Specification:
Lifting Capacity: 3500KG
Platform Length: 4300mm/4500mm
Platform Width: 600mm
Max lifting height: 1820mm
Min lifting height: 330mm
Second lifting height: 450mm
Voltage: 380/220V
Power: 2.2KW
System Pressure: 25Mpa
Air pressure: 0.6-0.8Mpa
Demo: Tube scissor alignment dual structure lift
Video
Video
|
|
| Brand Name: | LIONLIFT |
| Model Number: | LNJS-3518 |
| MOQ: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Payment Terms: | T/T, Western Union |
3.5T Wheel Aligment Scissor Lift With Secondary Lift
Descriptions:
Double series synchronous balance cylinders;
Powder coating; Computerized controller;
Oil hose explosion-proof valve and Germany oil adding ball valve and Italy oil seals;
Rollover-prevent functions;
Second lifting extensible platform;
Mechanical hydraulic double locking and max height limit and second scissor lift safe lock;
Driving-on rotated and vehicle safety steel plate;
Mounted in the ground or on the ground;
Specification:
Lifting Capacity: 3500KG
Platform Length: 4300mm/4500mm
Platform Width: 600mm
Max lifting height: 1820mm
Min lifting height: 330mm
Second lifting height: 450mm
Voltage: 380/220V
Power: 2.2KW
System Pressure: 25Mpa
Air pressure: 0.6-0.8Mpa
Demo: Tube scissor alignment dual structure lift
