Brand Name:	3Excel
Model Number:	T268
MOQ:	1SET
Price:	Negotiable
Delivery Time:	5-7 WORK DAYS
Payment Terms:	T/T

Specification	Accuracy	Measuring Range
Camber	±2´	±8´
Toe	±2´	±5´
SAI	±4´	±20´
Caster	±4´	±20´
Track width difference	±2´	±2´
Wheelbase difference	±2´	±2´
Front setback	±2´	±2´
Rear setback	±2´	±2´
Track width	±0.64cm	‹265cm(105in)
Wheelbase	±0.64cm	‹533cm(210in)

3D Standard Configuration	Quality(pcs)	Marks
Integrated Column	1
Beam	1
Cabinet	1
LCD	2	19"and 32"
PC	1
Target	4
Turntable	2
wheel clamps	4	11"-24"
steering lock	1
Brake Lock	1
Wheel clamp fastener	4
Wedge Pad	2
Transitional Block	2

3excel Wheel Aligner

3D Wheel Aligner

CCD Wheel Aligner

Computerized Wheel Aligner

4 Wheel Alignment Machine

Portable Wheel Alignment Machine

Digital Wheel Alignment Machine

Automotive Wheel Alignment Equipment

Mobile Wheel Alignment Equipment

Front End Alignment Equipment

Wireless Alignment Machine

Tire Alignment Machine

Car Lift Machine

3excel Wheel Aligner

3D Wheel Aligner

CCD Wheel Aligner

Computerized Wheel Aligner

4 Wheel Alignment Machine

Portable Wheel Alignment Machine

Digital Wheel Alignment Machine

Automotive Wheel Alignment Equipment

Mobile Wheel Alignment Equipment

Front End Alignment Equipment

Wireless Alignment Machine

Tire Alignment Machine

Car Lift Machine

products details

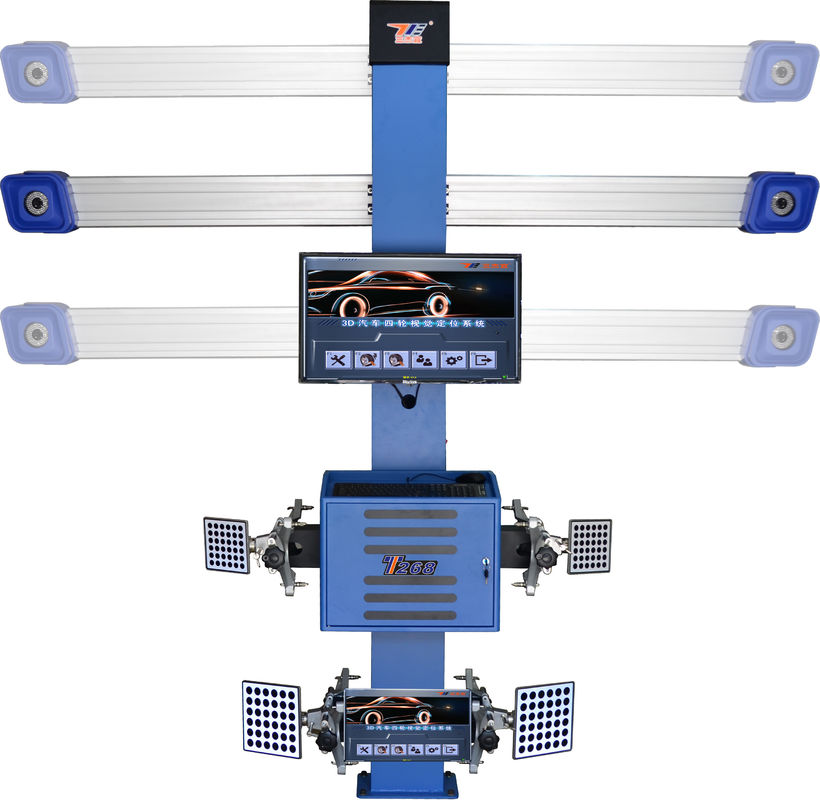

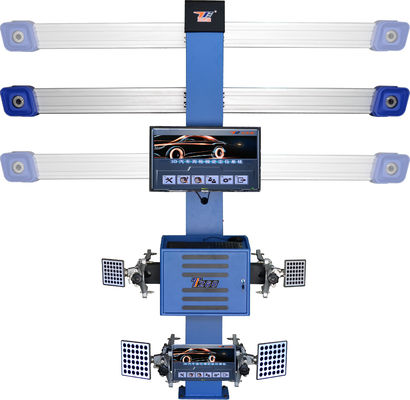

Auto Tracking Double LCD T268 3D Car Wheel Aligner 24'' rim

Double LCD 3D Car Wheel Aligner

T268 3D Car Wheel Aligner

24'' Rim Car Wheel Aligner

Jack&Hold function

Quick measurement function, get camber and toe without turning steering wheel

Full-range 3D animation instruction, simple and easy

Black box function, record working status at all time

Target monitoring, intelligent warning function

Automatic identify direction of vehicle-pushing and steering wheel turning

Telephone follow-up function, a good helper to manager customers

One click database upgrading ,scan QR code to get testing reporting.

Intelligent diagnose function, quick problem shooting

Thrust angle compensation, fix non-adjustable rear toe vehicle

Extensive additional measurement including wheelbase, track width etc.

Products Details

3excel Wheel Aligner

3D Wheel Aligner

CCD Wheel Aligner

Computerized Wheel Aligner

4 Wheel Alignment Machine

Portable Wheel Alignment Machine

Digital Wheel Alignment Machine

Automotive Wheel Alignment Equipment

Mobile Wheel Alignment Equipment

Front End Alignment Equipment

Wireless Alignment Machine

Tire Alignment Machine

Car Lift Machine

Auto Tracking Double LCD T268 3D Car Wheel Aligner 24'' rim

Double LCD 3D Car Wheel Aligner

T268 3D Car Wheel Aligner

24'' Rim Car Wheel Aligner

Jack&Hold function

Quick measurement function, get camber and toe without turning steering wheel

Full-range 3D animation instruction, simple and easy

Black box function, record working status at all time

Target monitoring, intelligent warning function

Automatic identify direction of vehicle-pushing and steering wheel turning

Telephone follow-up function, a good helper to manager customers

One click database upgrading ,scan QR code to get testing reporting.

Intelligent diagnose function, quick problem shooting

Thrust angle compensation, fix non-adjustable rear toe vehicle

Extensive additional measurement including wheelbase, track width etc.
