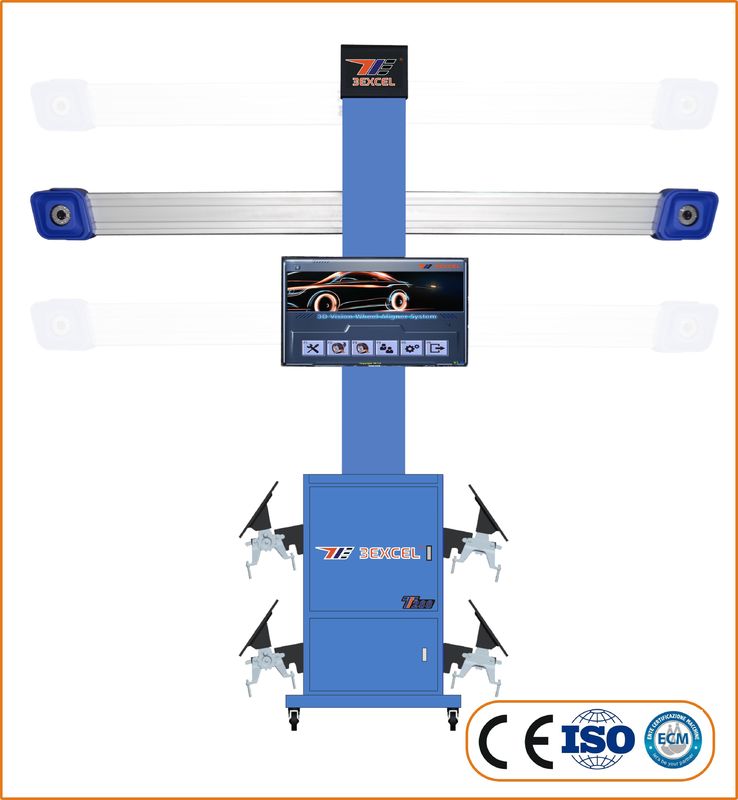

Movable Digital 3D Wheel Alignment Machine Android System Remote Controlled T288

Product Feature :

• Multi bay applications, fit big & small scissor/two post/ four post.
•
• Portable design, space saver.
•
• Camera beam automatic tracking targets, facilitate adjusting under vehicle.
•
• Free vehicle-pushing is not restricted by levelness of
  platform.
•
• Jack & hold function, easy adjustment with wheels off road.
•
• Graphic display function, clear illustration for beginner.
•
• 100mm Micro vehicle pushing within the range of turntable.
•
• VAG function special for Audi and VW constant toe adjustment.
•
• Customer feedback reminder timely reminds workshop to follow up with car situation and maintain old customer.

• Black box records the operation situation of wheel aligner,
  effectively improve the efficiency of problem-solution.

•

  Dynamic graphics shows variation value of every angle.





Measurement Range & Precision

Measurement Precision Measurement Accuracy
±0.01°    ±8°
±0.03°    ±19°
±0.02°    ±19°
±0.01°    ±2°
±0.02°    ±2°
±0.02°    ±2°
±0.02°    ±2°
±0.02°    ±2°
±0.02°    ±2°
±0.25cm <265cm

Measurement Items:

Camber
Caster Angle
Front Wheel K.P.I.
Toe
Rear Wheel Thrust Angle
Rear Wheel Shaft Deflection
Wheelbase Difference
Front Setback
Rear Setback
Wheelbase
Tread ±0.25cm <533cm

Any more information please contact us.
