Diagnostic Car Workshop 3D Wheel Alignment Balance Machine With CE ISO Certificate

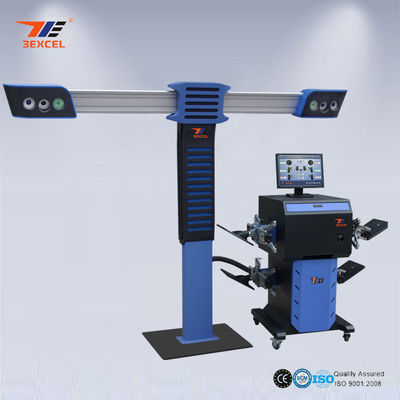

T51 3D Wheel Aligner
Measurement accuracy up to 0.01.
Customer feedback reminder timely reminds workshop to
follow up with car situation and maintain old customer.
Black box records the operation situation of wheel aligner,
effectively improve the efficiency of problem-solution.
Dynamic graphics shows variation value of every angle.
3D animation demonstration make it easier to learn.
Rub radius measure the steering wheel holder whether
symmetrical or not, then to keep stability.
Free vehicle-pushing is not restricted by levelness of
platform.

3D Product Advantage:
Technique Advantage:
Intellectual property rights, upgraded products with sustainability.
Hardware Advantage:
Four cameras with 5 mega-pixel.
Chessboard target design. (Exclusive Patent)
Measurement Advantage:
- Measurement accuracy up to 0.01.
- Dynamic graphics shows variation value of every angle.
- Free vehicle-pushing is not restricted by levelness of platform.
- Without looking at screen in the process of measurement.
Operation can be finished by intelligent LED indication light.
- Rub radius measure the steering wheel holder whether
symmetrical or not, then to keep stability.

Measurement Range & Precision
Measurement Precision Measurement Accuracy
±0.01° ±8°
±0.03° ±19°
±0.02° ±19°
±0.01° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.02° ±2°
±0.25cm <265cm
Measurement Items
Camber
Caster Angle
Front Wheel K.P.I.
Toe
Rear Wheel Thrust Angle
Rear Wheel Shaft Deflection
Wheelbase Difference
Front Setback
Rear Setback
Wheelbase
Tread ±0.25cm <533cm
