| Brand Name: | 3EXCEL |
| Model Number: | H315 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 1-2 Weeks |
| Payment Terms: | T/T, Western Union |

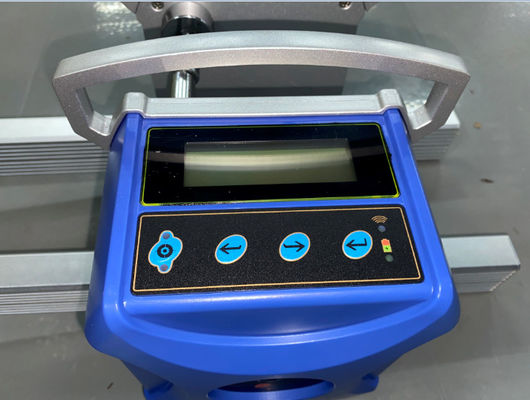

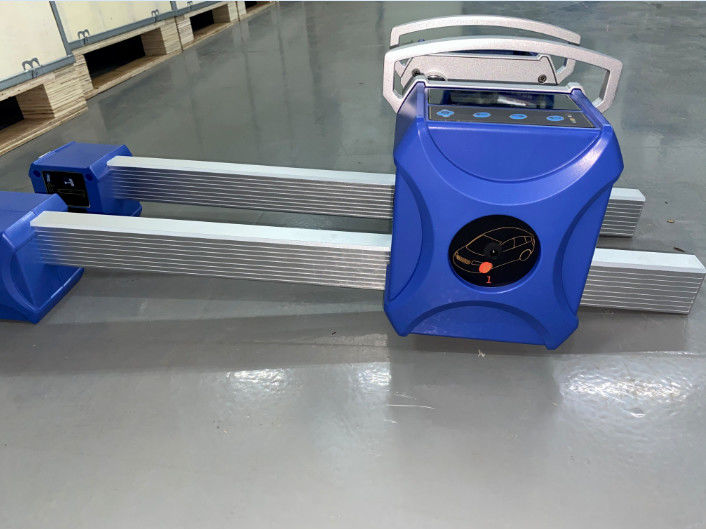

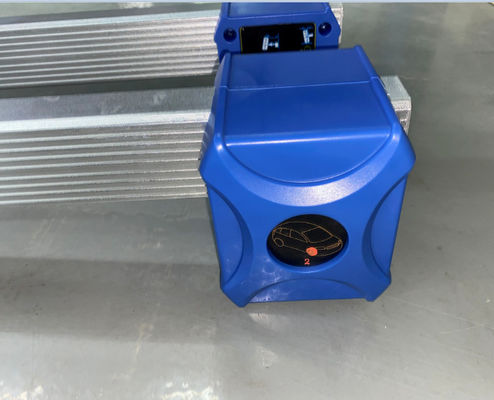

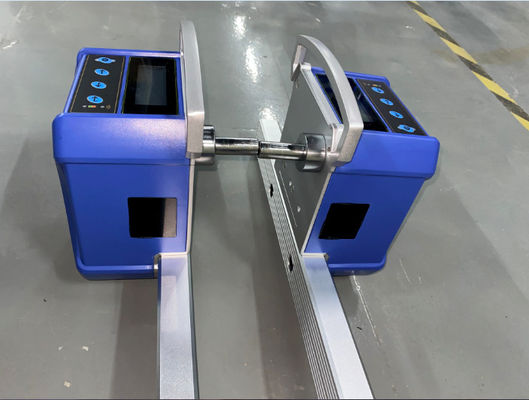

Highly Accureate Simple Laser Wheel Alignment Sensors
Technical Parameters:
| Technical Parameters | |||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ |
|
Product Description:
1.Computerized CCD wheel alignger with CE Certified.
2.Measuring system with 8 CCD Sensors wireless(Zigbee)
3..One stop platform calibration function.
4.Automatic check function for sensors.
5.Database update free every year.
6.CCD wheel aligner is the bestselling product and last 13 years.
.Standard Configuration (Simply way)
1.sensor*2
2.communication box *1
3.wheel clamp*2
4.Software *1
5.Charging cable*2
Image:
Applications:
For more information please contact us
Website: www.3excel.com
Email: serena@3excel.com
Waiting for your visiting.
