| Brand Name: | 3EXCEL |
| Model Number: | E315 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 5-35 days ,Depends on quantities |
| Payment Terms: | T/T, Western Union |

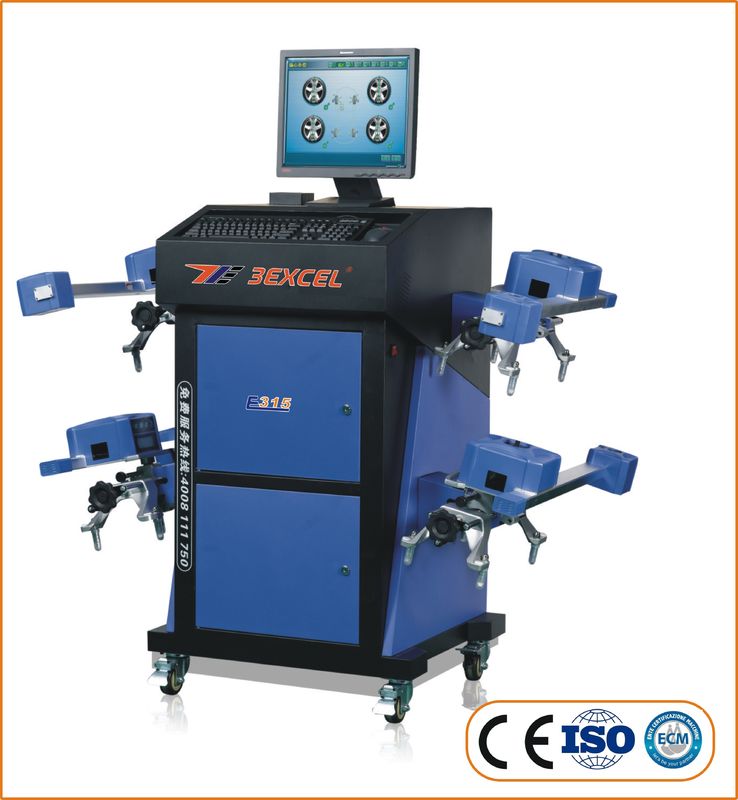

Zigbee Technology Wireless CCD Wheel Alignment Equipment For Tire Shop
Product Description:
1.Computerized CCD wheel alignger with CE Certified.
2.The software apply to Windows 7/10 &XP.
3.3D animation instruction and voice reminder ,user-friendly.
4.Measuring system with 8 CCD Sensors wireless(Zigbee)
5.LED Display for camber and toe.
6.Automatic check function for sensors.
7.Black box recording all the time.
8.Moth than 30000 vehicle database ,update free forever.
.Standard Configuration
Technical Parameters:
| Technical Parameters | |||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ | |
Application:
For more information please contact us
Website: www.3excel.com
Email: serena@3excel.com
Waiting for your visiting.
Video
|
