| Brand Name: | 3EXCEL |
| Model Number: | H315 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 5-8 WORK DAYS |
| Payment Terms: | T/T |
Best Selling Computerized Wireless Automotive Wheel Alignment Equipment E315
Product Description:
1.Measurement accuracy up to 0.01°.
2.Top quality products with CE Certificate.
3.With multiple “Top 20 Tools Award” from <<Motor Magazine>>.
4.Easy to operate with friendly user software.

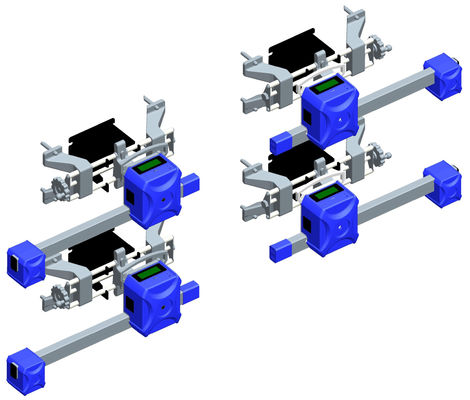

5.Measuring system with 8 CCD Sensors wireless (Zigbee).
6.LED Display for camber and toe.
7.Platform calibration function
8.Automatic check function for sensors.
Standard Configuration:
1.Sensors*4
2.Steering Locker*1
3.Brake Depressor*1
4.Turnable*2
5.24" Wheel Clamp*4
6.Wheel Clamp Fastener*4
7.Instruction Manual*1
8.6-M Emergency Wire*2
Measurement Range & Precision:
Measurement Range & Precision: |
|||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ | |
Workshop For CCD:
Any more information please feel free to contact us.
Looking forward to your contact us.
|
|
