| Brand Name: | 3EXCEL |
| Model Number: | E315 |
| MOQ: | 1 SET |
| Price: | Negotiation |
| Delivery Time: | 5-8WORK DAYS |
| Payment Terms: | T/T |

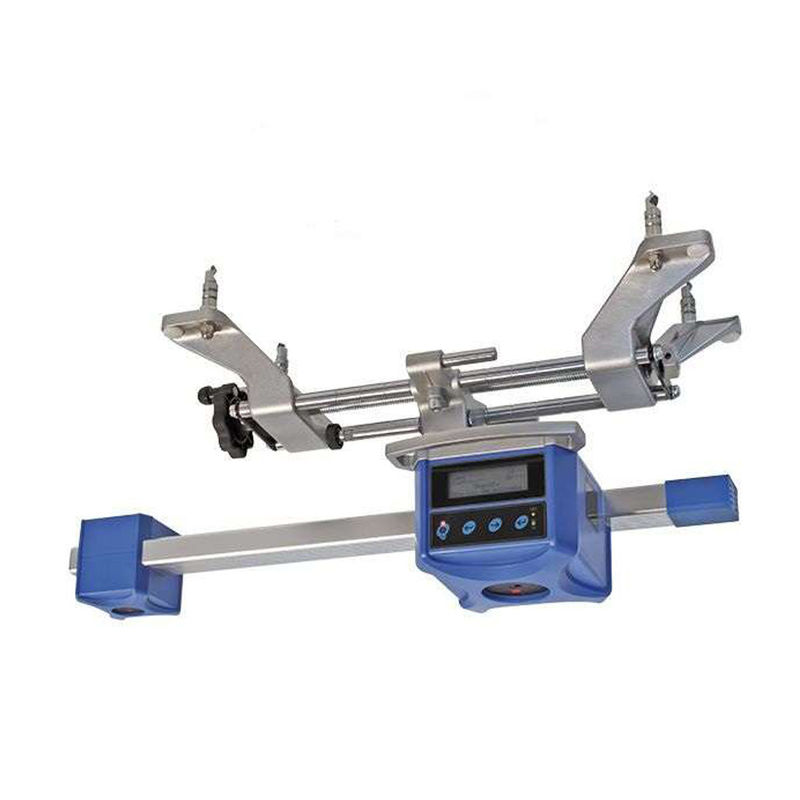

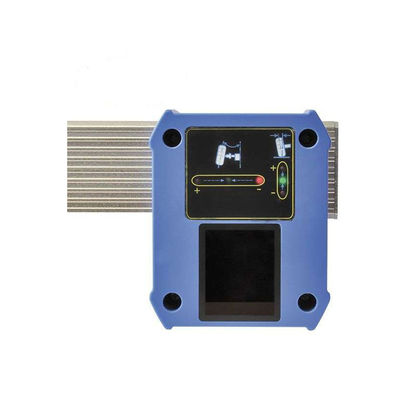

Zigbee Communication CCD Wheel Alignment Machine E315 Without Pushing Car
Product Futures:
√.Thanks to internal dual-core process(DSP&CPLD),it could work under special environment to resist
strong light such as sunshine and working lamp.
√.Tanks to the latest bluetooth 2.0 wireless communication system,the most effcient and anti-interference
frequency can be selceted automatically.
√.Comprehensive special measurement functions such as trend difference,wheelbase difference,especially
the toe-in curve suit for A6/B5 urta-low chassis vehicles.
√.Thanks to 8 beams 50 degree wide-angle CCD,it could measure wider and faster.
√.Thanks to the intelligent power management, measuring heads alarm for lack of power and battery
overcharge protection,makes the battery life extends greatly.
√.Exchange of measuring heads no need calibration.
√.Automatic alarm for measuring heads inccurate
√.Database could be upgraded by internet.New vehicle data could be added to custom datum by users with
the original data remain the same.
√.With automatic recovery system and black box diagnosis.
√.19'' LCD
√.With other basic conventional features(e-level,muti-language options,adjust animation,etc.)
Technical Parameters:
| Technical Parameters | |||||
| Item | Range | Accuracy | Item | Range | Accuracy |
| Total Toe | ±5º | ±0.02º | Tack Width | ＜105 inch | ±0.2" |
| Individual Toe | ±2.5º | ±0.01º | Wheel Base | ＜210 inch | ±0.2" |
| Camber | ±8º | ±0.03º | Tire Diameter | No limit | |
| Caster | ±20º | ±0.1º | Profile Of Wheel Adaptor | 11-24 inch | |
| KPI/SAI | ±20º | ±0.1º | Car Length | 2-5M | |
| Set Back | ±2º | ±0.03º | Operating Temperature | -20℃～50℃ | |
| Thrust Angle | ±2º | ±0.03º | Power Supply | 110-220V/50-60HZ | |
Standard Configuration:
CARGO
Any questions please contact us.
Waiting for your visiting.
Video
|
|
